Broke Pulper

The Broke Pulper is a vital machine for pulping broke and waste paper, enhancing the efficiency of pulp production with a unique rotor design that prevents blockages and reduces material loss.

Brand:
LEIZHAN

Quantity:
Availability:





Inquire Add to Basket

Product Description

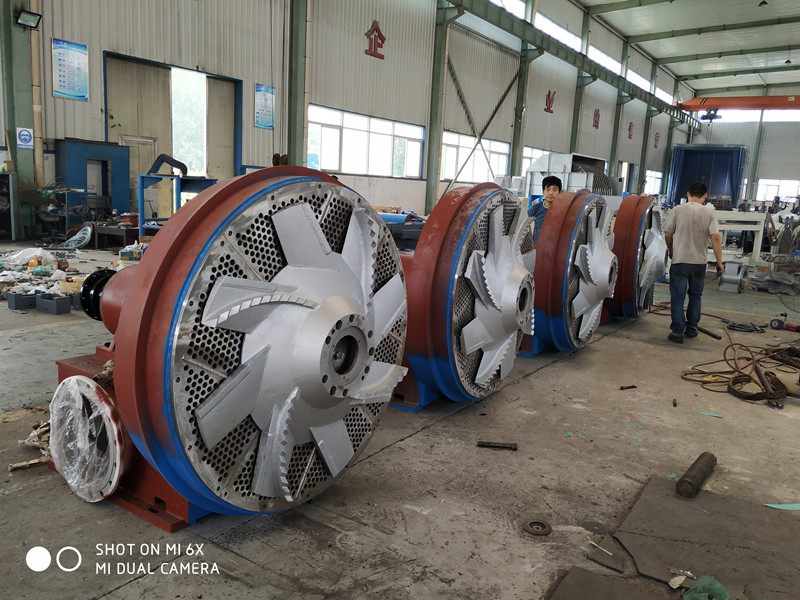

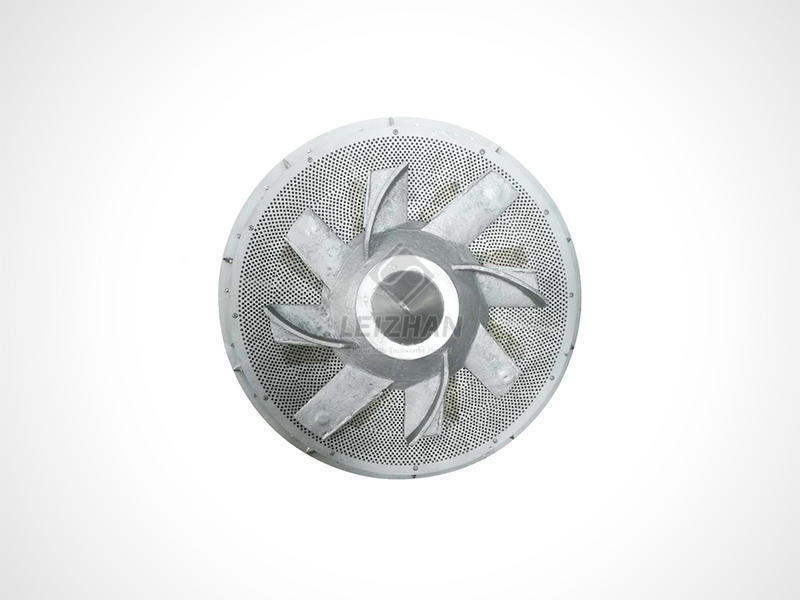

The Broke Pulper is primarily designed to process various types of broke and waste paper in the paper pulp stock preparation process. It features a horizontally installed rotor that ensures heavy rejects sink to the bottom of the tank, effectively reducing slag loss and preventing screen hole blockages. The machine utilizes a specially designed rotor that circulates water, creating turbulence for efficient shredding and defibering. Paper enters through the top inlet, and well-defibered pulp flows out through a screen plate.

Product Advantage

lEnergy-efficient rotor: The new rotor design optimizes hydraulic circulation, improving pulping efficiency.

lAdjustable clearance: The gap between the rotor and screen plate can be easily adjusted to meet specific requirements.

lFlexible drive options: Choose between belt drive or reducer drive based on available workspace.

lVersatile configuration: Can be used as a single unit or in parallel with two sets for higher capacity.

Technical Parameters

Type	ZDSS23	ZDSS24	ZDSS25	ZDSS25Z	ZDSS26	ZDSS28z
Nominal volume：(m3)	5	10	15	20	20	30
Pulp Concentration：(%)	3-5.5
Capacity：(T/D)	30-60	80-120	120-180	160-230	180-300	250-330
Motor：(kW)	75	110	160	160	185	250
